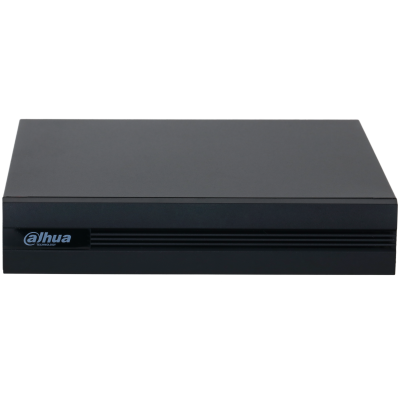

Dahua XVR1B04-I 4 Channel 1080N/720P XVR

• Main Processor

  Industrial-grade processor

  Operating System

  Embedded Linux

  Operating Interface

  Web; Local GUI

  SMD Plus

  SMD Plus by Recorder

  4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

  Audio and Video

  Analog Camera Input

  4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

  Camera Input

  1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.

  IP Camera Input

  Up to 5 channels of IPC access 1 IP channel by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled.

  Encoding Capacity

  Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–15 fps)

  Dual-stream

  Yes

  Video Bit Rate

  32 kbps–4096 kbps

  Audio Sampling

  8 kHz, 16 bit

  Audio Bit Rate

  64 kbps

  Video Output

  1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

  Multi-screen Display

  When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

  Third-party Camera Access

  Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

  Compression Standard

  Video Compression

  AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

  Audio Compression

  G.711a; G.711u; PCM

  Network

  Network Protocol

  HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

  Mobile Phone Access

  iOS; Android

  Interoperability

  ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK

  Browser

  Chrome; IE; Safari; Edge; Firefox

  Recording Playback

  Record Mode

  General; alarm; motion detection

  Recording Playback

  1/4

  Backup Method

  USB device and network

  Playback Mode

  Instant playback; general playback; event playback; tag playback; smart playback

  Alarm

  General Alarm

  Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

  Anomaly Alarm

  Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

  Intelligent Alarm

  SMD Plus

  Alarm Linkage

  Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

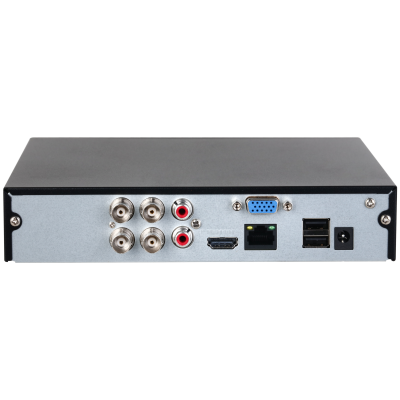

  Ports

  Audio Input

  1-channel RCA 4-channel BNC (Coaxial Audio)

  Audio Output

  1-channel RCA

  Two-way Talk

  Yes (share the same audio input with the first channel)

  Disk Interface

  1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.

  USB

  2 (2 rear USB 2.0 ports)

  HDMI

  1

  VGA

  1

  Network Port

  1 (10/100 Mbps Ethernet port, RJ-45)

  General

  Power Supply

  12 VDC, 1.5 A

  Power Consumption

  <7 W (without HDD)

  Net Weight

  0.55 kg (1.19 lb)

  Gross Weight

  0.97 kg (2.11 lb)

  Product Dimensions

  197.0 mm × 203.1 mm × 41.5 mm (7.76" × 8.00" × 1.63") (W × D × H)

  Packaging Dimensions

  332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)

  Operating Temperature

  –10 °C to +45 °C (+14 °F to +113 °F)

  Storage Temperature

  –20 °C to +60 °C (–4 °F to +140 °F)

  Operating Humidity

  10%–90% (RH), non-condensing

  Installation

  Desktop

  Certifications

  CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
